Cylinderbehör

Used for oval cylinder type 701 for door thicknesses where the cylinder must be extended.

Brass cylinder ring. New model covering three previous sizes.

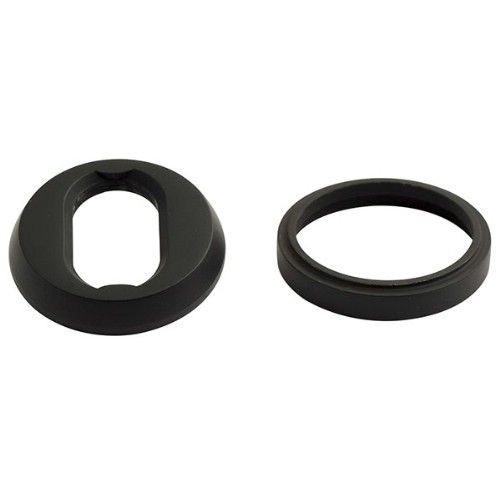

Cylinder ring (9 mm) and extension ring (7 mm) made of brass in the same package.
Only the cylinder ring is fitted when the lock cylinder protrudes 6-11 mm from the door leaf.
Cylinder ring + extension ring is fitted when the lock cylinder protrudes 12-18 mm from the door leaf.
For longer protrusions, the assembly is completed with an extension ring Universal Extra.
Material: Brass.
*= Made of stainless steel.

Wood screw for cylinder 709. Galvanized.
Length: 70 mm

The cylinder screw is intended for oval cylinders type 701. The length depends on whether you need a cylinder extender or not. Without cylinder extender, 28 mm length fits.
Material: Galvanized steel.
Thread: M5.

Brass cylinder knob. Supplied with 90 mm turn screw for through attachment, 28 mm cylinder screw and 83 mm cylinder turn pin with washer. Fits door thickness 38-70 mm.

Supplied with knob screw, cylinder screw and driver without cylinder ring. Door thickness up to 85 mm.

Used together with cylinder knob type 560. Older model is now only used for toilet accessories 265.

High-strength steel screw with M5 thread including cylinder plugs.
Intended for Assa 712 round cylinder for double-sided mounting.
Contains 4 screws and 2 cylinder plugs.

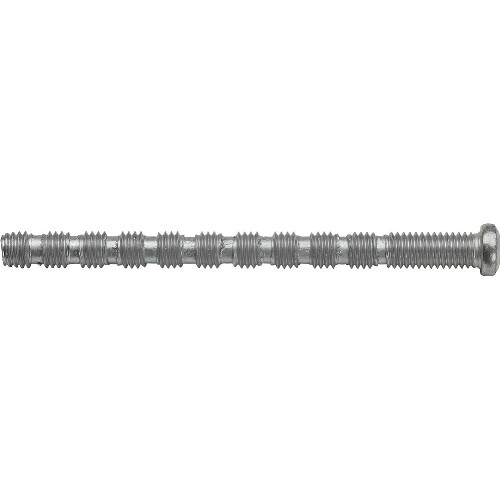

Cuttable brass screw for cylinder knob and door handle. Thread M5.

Brass pressure screw.

Cuttable 90 mm screw with socket nut made of brass for cylinder knob and door handle. Thread M5.

Accessories to cover the door's cylinder socket or where there is to be a cylinder without a knob. Fits door thickness 38-60 mm. (PP 38-70 mm). Screw included.
Diameter: Ø 52 mm.
Material: Brass.

Brass cover plate. Used as the outside of ASSA 2000 Evo to cover old holes if necessary.

Type 565T is now only used for toilet accessories type 265. Others are used together with cylinder knob type 560.
